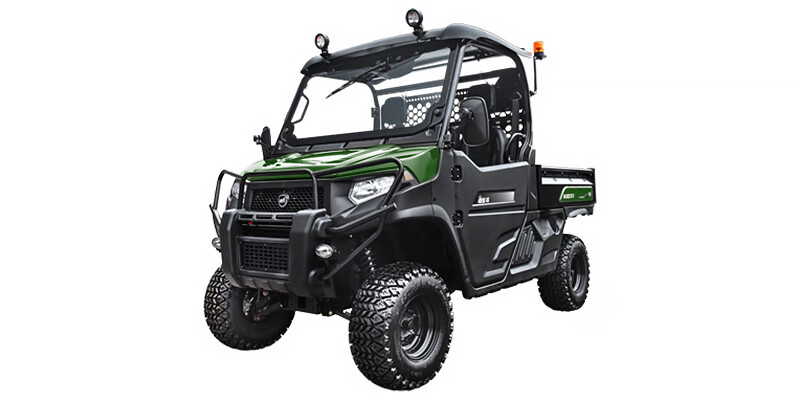

K9 2400

Specifications

• PRICING

  add remove
  • Price
    Standard
  • MSRP
    18489
  • MSRP + Destination
    18489
  • Currency
    US Dollars
  • Warranty (Months)
    6
  • Warranty (Condition)
    Limited
  • Battery Warranty (Months)
    0
• ENGINE

  add remove
  • Engine
    Standard
  • Engine Type
    In-Line
  • Cylinders
    3
  • Engine Stroke
    4-Stroke
  • Horsepower (bhp)
    24
  • Horsepower (kW)
    17.9
  • Horsepower RPM
    3000
  • Cooling
    Liquid
  • Displacement (cc)
    1007
  • Displacement (ci)
    61.5
  • Starter
    Electric
  • Fuel Type
    Diesel
  • Fuel Requirements
    Regular
  • Carburetion
    Standard
  • Fuel Injector
    No
  • Carburetor
    Yes
  • Carburetion Type
    Carburetor
  • Parental Controls
    Not Available
  • Snorkel Air Intake
    Not Available
  • Engine Block Heater
    Not Available
  • Engine Brand Name
    Daedong
  • Other Engine
    Not Available
• ELECTRIC ENGINE

  add remove
  • Electric Engine
    Not Available
  • Battery
    Not Available
  • Battery Charging System
    Not Available
• TRANSMISSION

  add remove
  • Transmission
    Standard
  • Transmission Type
    Continuously Variable (CVT)
  • Overdrive
    No
  • Hi / Low Range
    Yes
  • Primary Drive (Rear Wheel)
    Shaft
  • Primary Drive (Engine / Transmission)
    Belt
  • Primary Drive (Front Wheel)
    Shaft
  • Reverse
    Yes
  • Adjustable Throttle
    Not Available
  • Other Transmission
    Not Available
• DRIVE LINE

  add remove
  • Driveline
    Standard
  • Driveline Type
    4X4
  • Number Of Driveline Modes
    1
  • Rear Unlocking Differential
    Yes
  • Rear Solid Axle
    No
  • Limited Slip Differential
    Standard
  • Limited Slip Differential Location
    Front
  • Differential Lock
    Standard
  • Differential Lock Location
    Front / Rear
  • Other Drive Line
    Not Available
• TECHNICAL SPECIFICATIONS

  add remove
  • Dimensions
    Standard
  • Length (mm)
    3045
  • Width (in)
    62.6
  • Width (mm)
    1590
  • Height (in)
    76.8
  • Height (mm)
    1950
  • Wheelbase (in)
    85.8
  • Wheelbase (mm)
    2180
  • Front Tread Width (in)
    49.7
  • Front Tread Width (mm)
    1262
  • Rear Tread Width (in)
    49.8
  • Rear Tread Width (mm)
    1264
  • Turning Radius (ft)
    14.1
  • Ground Clearance (in)
    12.5
  • Ground Clearance (mm)
    317.5
  • Weight
    Standard
  • Dry Weight (lbs)
    2050
  • Dry Weight (kg)
    930
  • Payload Capacity (lbs)
    1750.5
  • Payload Capacity (kgs)
    794
  • Towing Capacity (lbs)
    1300
  • Towing Capacity (kgs)
    590
  • Capacities
    Standard
  • Fuel Capacity (gal)
    9.8
  • Fuel Capacity (l)
    37
  • Performance
    Standard
• EXTERIOR

  add remove
  • Construction
    Standard
  • Frame
    Steel
  • Body Material
    Plastic
  • Exterior Guards
    Standard
  • Brush Guard
    Yes
  • Chain Guard
    No
  • Front Mud Guards
    No
  • Rear Mud Guards
    No
  • Radiator Guard
    No
  • Exterior Covers
    Standard
  • Nerf Bars
    Not Available
  • Front Bumper
    Standard
  • Rear Bumper
    Not Available
  • Front Fender Flairs
    Standard
  • Rear Fender Flairs
    Standard
  • Skid Plate
    Standard
  • Bash Plate (Front)
    Yes
  • Swing Arm Skid Plate
    No
  • License Plate
    Not Available
  • Safety Flag
    Not Available
  • Cab Canopy
    Standard
  • Cab Cage
    Standard
  • Cab Rollbar
    Standard
  • Cab Doors
    Standard
  • Cab / Bed Divider
    Optional
  • Camouflage Front Body Cover
    Not Available
  • Exhaust Guard
    No
  • Light Guard
    No
  • Other Exterior
    Not Available
  • Cab Canopy Material
    Hard
  • Camouflage
    No
  • Cab Door Material
    Hard
• STEERING

  add remove
  • Steering
    Standard
  • Steering Control
    Steering Wheel
  • Steering Type
    Power
  • Tilt Steering
    Standard
  • Other Steering
    Not Available
• SUSPENSION

  add remove
  • Front Suspension
    Standard
  • Front Suspension Type
    Independent Double Wishbone
  • Rear Suspension
    Standard
  • Rear Suspension Type
    Independent Double Wishbone
  • Rear Adjustable Shock / Spring Pre-Load
    No
  • Rear Stabilizer Bar
    Yes
  • Air Adjustable
    No
  • Center Suspension
    Not Available
  • Other Suspension
    Not Available
• WHEELS & TIRES

  add remove
  • Wheels
    Standard
  • Wheels Composition
    Steel
  • Front Tire Diameter (in)
    25
  • Rear Tire Diameter (in)
    25
  • Wheel Weights
    Not Available
  • Tires
    Standard
  • Tread Type
    All Terrain
  • Front Tire Width
    10
  • Front Wheel Diameter
    12
  • Rear Tire Width
    11
  • Rear Wheel Diameter
    12
  • Front Tire (Full Spec)
    25 X 10 - 12
  • Rear Tire (Full Spec)
    25 X 11 - 12
  • Tire Chains
    Not Available
  • Spare Tire
    Not Available
  • Other Wheels & Tires
    Not Available
• BRAKES

  add remove
  • Brakes
    Standard
  • Front Brake Type
    Hydraulic Disc
  • Rear Brake Type
    Hydraulic Disc
  • Anti-Lock Brakes
    Not Available
  • Parking Brake
    Standard
  • Linked Brake System Front to Rear
    Not Available
  • Engine Braking
    Not Available
  • Regenerative Braking
    Not Available
  • Regenerative Deceleration
    Not Available
  • Other Brakes
    Not Available
• TOWING & HAULING

  add remove
  • Front Hitch
    Standard
  • Rear Hitch
    Standard
  • Rear Hitch Type
    Receiver
  • Draw Bar
    Not Available
  • Tow Hook
    Not Available
  • Winch
    Optional
  • Roller Fairlead
    Optional
  • Trailer
    Not Available
  • Other Towing & Hauling
    Not Available
  • Front Hitch Type
    Receiver
• STORAGE

  add remove
  • Bed Length (in)
    43.7
  • Bed Length (mm)
    1110
  • Bed Width (in)
    58.3
  • Bed Width (mm)
    1480
  • Bed Height (in)
    11.5
  • Bed Height (mm)
    293
  • Underseat Storage
    Not Available
  • Glove Box / Dash Storage
    Standard
  • Fender Storage
    Not Available
  • Front Storage Well
    Not Available
  • Front Rack
    Not Available
  • Front Rack Storage
    Not Available
  • Rear Storage Well
    Not Available
  • Rear Rack
    Not Available
  • Rear Rack Storage
    Not Available
  • Cargo Bed Storage
    Not Available
  • Rack Rails
    Not Available
  • Storage Extender
    Not Available
  • Bag Liners
    Not Available
  • Cupholder
    Standard
  • Number Of Cupholders
    2
  • Cargo Bed
    Standard
  • Cargo Bed Material
    Steel
  • Bed Capacity (lbs.)
    1102
  • Bed Capacity (kgs.)
    500
  • Cargo Bed Tilt
    Yes
  • Integral Tie-Down Hooks
    Yes
  • Cargo Bed Cover
    Not Available
  • Cargo Bed Liner
    Standard
  • Map Holder
    Not Available
  • Helmet Locks
    Not Available
  • Helmet Storage
    Not Available
  • Gun Scabbard
    Not Available
  • Storage Cover
    Not Available
  • Other Storage
    Not Available
• SEATS

  add remove
  • Seat
    Standard
  • Seat Type
    Bench
  • Seat Material
    Vinyl
  • Seat Specifications
    Standard
  • Number Of Seats
    3
  • Number Of Rows
    1
  • Grab Rail or Strap
    Standard
  • Heated Seat
    Not Available
  • Other Seat
    Not Available
• INSTRUMENTATION

  add remove
  • Digital Instrumentation
    Standard
  • Clock
    Not Available
  • Speedometer
    Standard
  • Tachometer
    Not Available
  • Trip Odometer
    Not Available
  • Trip Computer
    Not Available
  • Compass
    Not Available
  • Navigation System
    Not Available
  • GPS
    Not Available
  • Hour Meter
    Standard
  • Lap Timer
    Not Available
  • Voltage Meter
    Not Available
  • Fuel Level Warning
    Standard
  • Fuel Level Warning Type
    Gauge
  • Oil Pressure Gauge
    Not Available
  • Temperature Warning
    Standard
  • Temperature Warning Type
    Gauge
  • Shift Light
    Not Available
  • Service Reminder
    Not Available
  • Multi-Lingual Instrumentation
    Not Available
  • Battery Status Gauge
    Not Available
  • Energy Consumption Gauge
    Not Available
  • Other Instrumentation
    Not Available
• LIGHTS

  add remove
  • Headlight(s)
    Standard
  • Type
    Halogen
  • Halogen Headlight(s)
    Standard
  • Adjustable Headlights
    Not Available
  • Fog Lights
    Optional
  • Headlight Mounts
    Standard
  • Tail Light / Brake Light
    Standard
  • Beacon Light
    Not Available
  • Work Light Front or Rear
    Optional
  • Other Lights
    Not Available
  • Headlight Mounting Bar
    Not Available
• ELECTRICAL

  add remove
  • Generator
    Not Available
• GLASS

  add remove
  • Rearview Mirrors
    Standard
  • Windshield
    Optional
  • Windshield Wipers
    Optional
  • Other Glass
    Not Available
• CONVENIENCE

  add remove
  • Engine Immobilizer
    Not Available
  • Keyless Ignition
    Not Available
  • Power Outlet
    Standard
  • Cruise Control
    Not Available
  • Adjustable Levers
    Not Available
  • Alarm System
    Not Available
  • Handlebar Lock
    Not Available
  • First Aid Kit
    Not Available
  • Heater
    Not Available
  • Seat Belts
    Standard
  • Reverse Alarm
    Optional
  • Floor Mats
    Standard
  • Other Convenience
    Not Available
• AUDIO & COMMUNICATION

  add remove
  • Radio
    Not Available
  • Speakers
    Not Available
  • Cassette Player
    Not Available
  • CD Player
    Not Available
  • CB Radio
    Not Available
  • Intercom
    Not Available
  • Headset
    Not Available
  • Other Audio & Communication
    Not Available
  • Wireless / Connectivity
    Not Available
• YARD EQUIPMENT

  add remove
  • Plow
    Not Available
  • Plow Actuator
    Not Available
  • Lawn Mower
    Not Available
  • Other Yard Equipment
    Not Available
• MOUNTS

  add remove
  • Gun Scabbard Mount
    Not Available
  • Plow Mount
    Not Available
  • Tool Bag Mount
    Not Available
  • Windshield Mounts
    Optional
  • Winch Mount
    Optional
  • Other Mounts
    Not Available
• PAINT & FINISH

  add remove
  • Paint
    Standard
  • Secondary Color
    Not Available
  • Metallic
    No
  • Decal Kit
    Standard
  • Other Paint & Finish
    Not Available
• SPECIAL PACKAGE

  add remove
  • Special Package
    Not Available
• COMMENTS

  add remove
  • Comment
    Standard
  • Previous Model Year Accessories
    Yes
• Color options

  add remove
  • Green
  • Red
