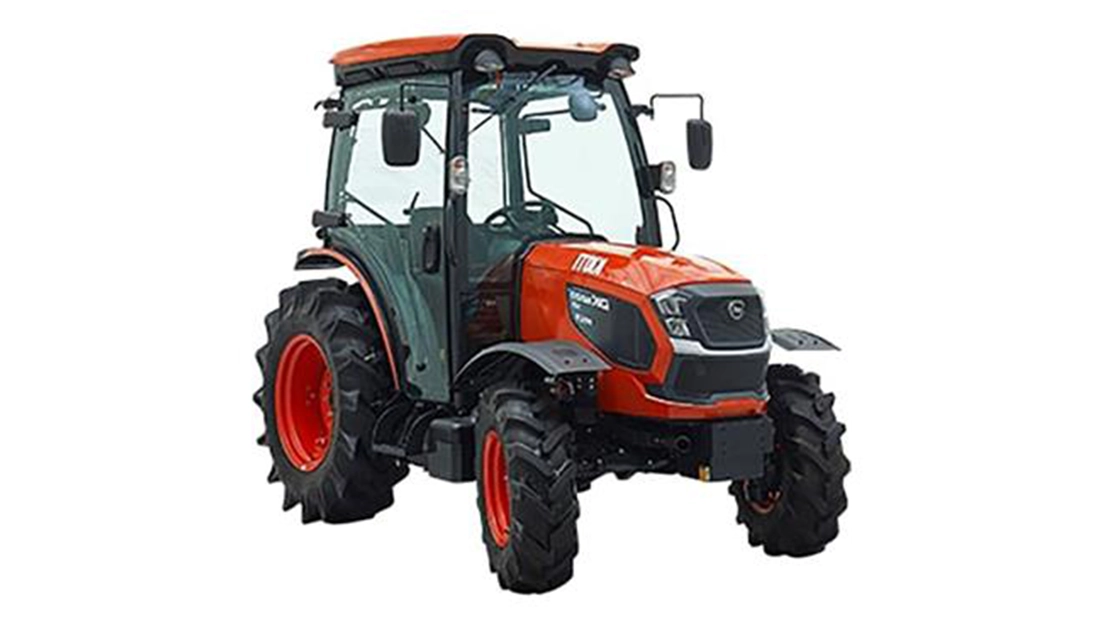

DK5320HSE

DK5320HSE

Description

Everything you want. Without all the things you don’t.

SE models offer additional comfort and convenience features: hydrostatic transmission, single hydraulic valve, joystick valve and premium seat. These Machines are built to complete the job.

  • Convenience Features: A deluxe suspension seat, PTO cruise, high ground clearance, power steering, tilt steering wheel, center marker, projection light for better night vision, and a one piece engine panel to check service points with ease.
  • Safety: Wet disc brakes, a sturdy ROPS or Cab, and a secure seatbelt keep you safe. Headlights, safety lights, and a rear work light lets you see attachments and drawbars clearly, even in low-light conditions.
  • Attractive Options: Dress up your tractor with impressive options. Swap standard tires for turf, industrial, or R14 tires. Add a fuel heater kit, 2nd remote hydraulic valve, or bluetooth speaker kit for comfort and convenience.
  • Rugged Performance: Dependable, liquid-cooled KIOTI 3-cylinder diesel engine hums with fuel efficiency, ready to take on demanding jobs all day long. Engage the rear differential lock for unflinching traction, then command implements with the push-button hydraulic PTO.

Specifications

  • ENGINE
    add remove
    • Engine Model Code
      3HT-TH4C
    • Horsepower (bhp)
      50.30 hp
    • Horsepower RPM
      2600 rpm
    • Displacement (ci)
      1826cc
    • Aspiration
      Intercular
    • Fuel Type
      Diesel
  • TRANSMISSION
    add remove
    • Transmission
      Hydrostatic
    • Number Of Speeds (Forward)
      3 Ranges w/ Infinite Speeds
    • Number Of Speeds (Reverse)
      3 Ranges w/ Infinite Speeds
    • Maximum Forward Speed (kph)
      26.9
  • HYDRAULIC SYSTEM
    add remove
    • Pump Capacity (lpm)
      62.4
    • Rear 3-Point Hitch Category
      Category 1
    • Rear 3-Point Hitch Lift Capacity (kgs)
      680
  • PTO
    add remove
    • PTO Type
      Independent
    • PTO Horsepower (kW)
      21.6
  • TECHNICAL SPECIFICATIONS
    add remove
    • Length (mm)
      3,189
    • Width (mm)
      1,596
    • Height (mm)
      2,458
    • Wheelbase (mm)
      1,810
    • Front Tread Width (mm)
      1,254
    • Rear Tread Width (mm)
      1,251
    • Turning Radius (m)
      2,610
    • Ground Clearance (mm)
      368
    • Dry Weight (kg)
      1,598
  • BRAKES
    add remove
    • Brakes
      Wet Multi Disc
  • Color options
    add remove
    • Orange
