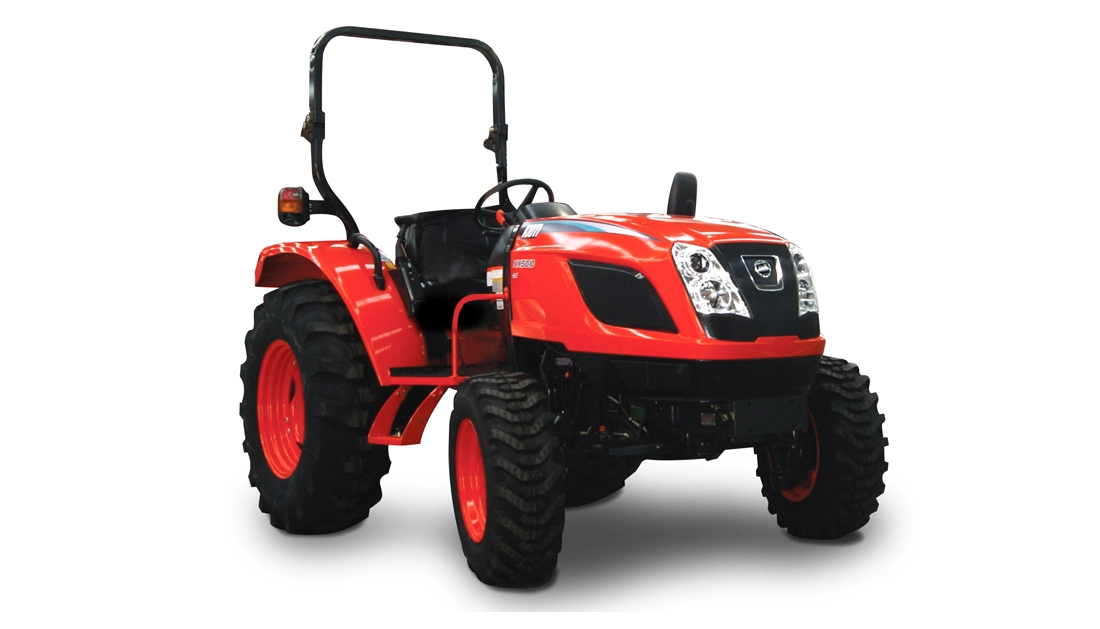

NX6020 ROPS

NX6020 ROPS

Description

The NX6020 models are ready for any job that demands a durable tractor. An efficient engine, HST drive and flat work platform make the NX series versatile and great value. These tractors are loaded with standard equipment and features such as wet disc brakes, rear remotes, PTO, adjustable seat and true cruise control.

Specifications

  • ENGINE
    add remove
    • Engine
      Liquid Cooled 4 Cylinder Diesel
    • Engine Brand Name
      Daedong 4B243LWHC
    • Horsepower RPM
      60 hp @ 2600 rpm
    • Displacement (ci)
      2435cc
  • TRANSMISSION
    add remove
    • Transmission
      3 Range Hydrostatic
    • Other Transmission
      4 Wheel Drive
  • HYDRAULIC SYSTEM
    add remove
    • Hydraulic System
      Position & Draft Control
    • Steering Pump Output (lpm)
      31.2 l/pm
    • Implement Pump Output (lpm)
      36.4 l/pm
    • Other Hydraulic System
      4 Sets of Hydraulic Remotes (2 rear/2 front)
  • PTO
    add remove
    • PTO
      Independent 540rpm
    • PTO Type
      Electric Switch Engagement
  • DRIVE LINE
    add remove
    • Differential Lock
      Yes
  • TECHNICAL SPECIFICATIONS
    add remove
    • Length (mm)
      3547
    • Width (mm)
      1669
    • Height (mm)
      2618
    • Wheelbase (mm)
      1920
    • Ground Clearance (mm)
      400
    • Dry Weight (kg)
      1910
    • Fuel Capacity (l)
      56 Litre
  • EXTERIOR
    add remove
    • ROPS
      Step Through Platform
  • WHEELS & TIRES
    add remove
    • Front Tire (Full Spec)
      10 - 16.5
    • Rear Tire (Full Spec)
      14.9 - 24
  • HVAC
    add remove
    • Air Conditioning
      Yes
    • Heater
      Yes
  • CONVENIENCE
    add remove
    • Other Convenience
      Adjustable Seat, Steering Wheel and Instruments
  • Color options
    add remove
    • Orange
